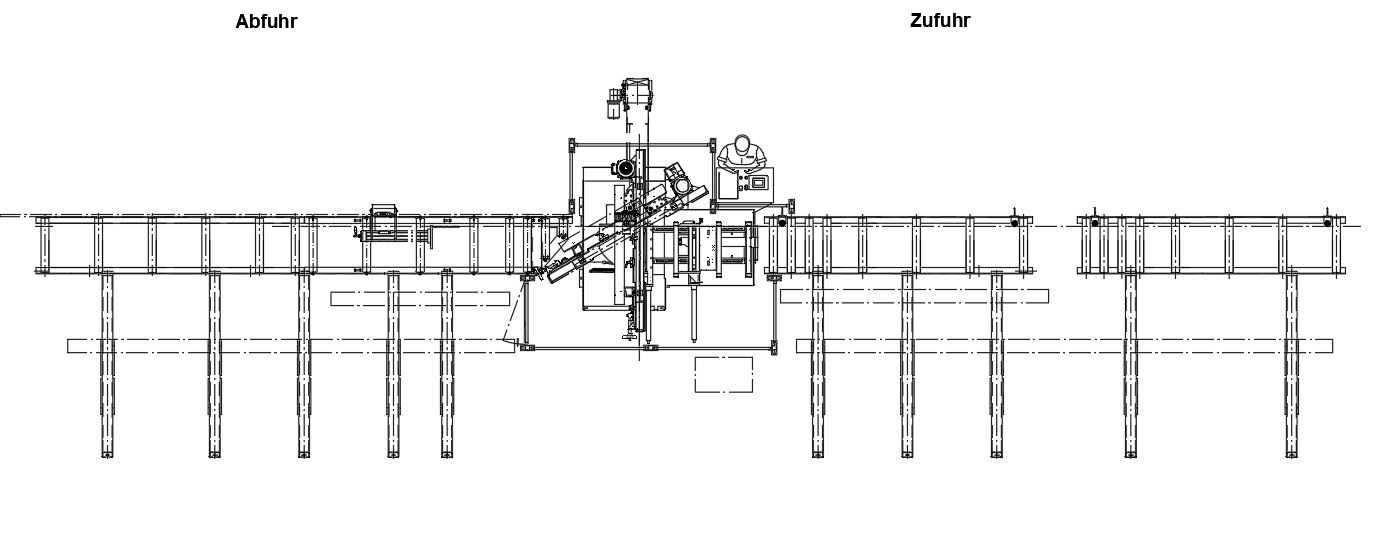

MEBAeco 335 GA
MEBAeco 335 GA, automatic miter band saw, precision, ergonomics, efficiency, metalworking, CE control, automatic sawing process, miter adjustment, industrial saw, high performance, material clamping, saw blade drive, touchscreen control, servo positioning
Product information "MEBAeco 335 GA"
MEBAeco: Ready-made individuality
2-column automatic metal band saw with infinitely variable miter adjustment from 90° to 30°. The MEBAeco 335 GA automatic miter band saw is universally applicable, ergonomically designed, and offers excellent value for money. The machine control system complies with CE standard 89/289.Standard equipment
- Access protection in accordance with CE standard via protective fence
- Fully automatic sawing process after entering the length and setting the number of pieces
- Workpiece clamping-sawing-ramping up-positioning
- Manual miter adjustment from 90° to 30°, infinitely variable according to scale
- The miter pivot point is the intersection between the saw blade and the material support, which means that the length measurement does not change when the angle position is altered.
- MEBA high-performance package: Saw feed via frequency-controlled spindle drive with automatic cutting pressure and feed monitoring. This ensures optimum conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
- Hydraulic full-stroke material clamping
- Quick material clamping
- The material is clamped parallel at 90° for every angle setting of the saw frame.
- Automatic operation also possible with miter setting
-
Stable two-column linear-guided saw frame
- Saw blade positioned at a 3° angle to the material support surface
- Central machine control
- Automatic saw frame clearance height adjustment
- Minimum speed and saw blade breakage monitoring on the band disc
- AC frequency-controlled band saw drive, infinitely variable from 15 to 150 m/min
- Electronic PLC control
- Menu-driven, intelligent 4.3" touchscreen control via Windows CE 6.0 operating system: Program memory for 1000 data records; Continuous bus networking; Option to switch between units of measurement; Documentation and information on faults and warnings
- Automatic cutting channel calculation with double stroke function Material length feed via backlash-free ball screw and servo positioning technology. Positioning accuracy 0.1 mm
- Adjustment of insertion speed depending on material weight
- Built-in operating hours counter
- Material feed function for short non-productive times—no need to re-clamp the material for short sections
- Material section length: Single stroke up to 600 mm, multiple strokes up to 9999 mm
- Movable belt guide arm, adjustment to material width
- Saw blade deflection rollers - carbide guide
- Chip cleaning brush, rotating
- Saw blade tension with torque wrench
- Operating instructions and spare parts list (digital)
-
1 MEBA bimetal saw blade 4/6 ZpZ on machine
- Coolant system (approx. 100 liters). Can be combined with MEBA Eco micro-dosing system as an option
- Silver gray/blue gray paint finish (RAL 7001/RAL 7031)
- Modem for remote access including dashboard (overview of all relevant machine data) included in delivery. Term: 1 year. (Valid only for machines located in Germany: includes final maintenance after warranty expires. During the warranty period, the modem remains the property of MEBA.)
Optional
- Laser light for cutting line display/scoring saws
- Chip brush driven
- Microdosing system
- Tension pressure regulation with fixed control panel
- Hydraulic material bundle tension 335 GA
- 7" CE Panel MEBAeco 335 GA
- Zero stop (automatic 0 positioning)
- Control panel set up separately, cable length 2.5 m
- LED work light
- Measuring stop 0 - 500 mm
- Special two-color paint finish according to RAL chart
- Hydraulic saw blade tensioning 335 GA
- Scraper belt conveyor for optimal chip disposal
- Mobile chip tipping container for forklift transport
- Opening the slide-in clamping device on both sides
- Grooved clamping strips for 335 GA, ES, and HS
- Water spray gun
- Compressor for microdosing system
- Heating for hydraulics
- Heating coolant
- Mounting elements (6x M16)
- Additional doors in the protective fence
- Section slide swinging along
- Hydraulic miter clamping including digital miter cut control
- USB port
- MEBA NC Server: External Postprocessor: Data Exchange OPC-UA for P300 incl. 10 m patch cable
- Rollenbahnen sind in verschiedenen Längen verfügbar
Specifications subject to change without notice.| Product number: | 335 GA00020 |
|---|---|
| Automation level: | Serial cut |
| Cutting material: | Pipe, Round Stock Material |
| Dimensions: | 2350x2200x1900 mm |
| Max. cutting range height ↕ (mm): | 335 |
| Max. cutting range width ↔ (mm): | 500 |
| Max. cutting range Ø (mm): | 335 |
| Type: | Miter Saw |
| Type series: | MEBAeco |
| weight: | 1510 KG |
| Schnittgeschwindigkeit: | 15 - 150 m/min |
| Reststücklänge: | 65 mm |
| Antrieb - Sägeband: | 3,0 kW AC |
| Sägebandspannung: | Mechanisch |
| Sägebandabmessung: | 4400x34x1,1 mm |
| Arbeitshöhe: | 750 mm |
