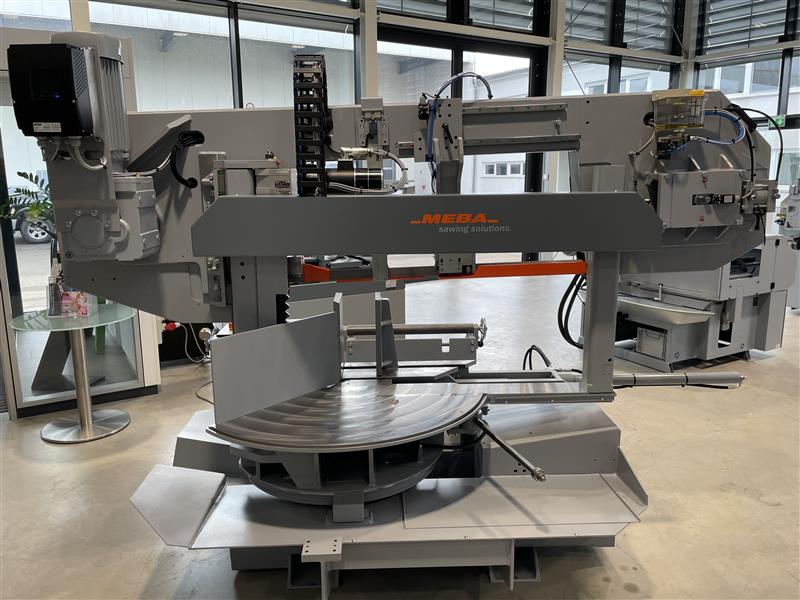

MEBAeco 410 DG
Product information "MEBAeco 410 DG"
Off-the-shelf individuality
standard equipment
- Future-oriented electric saw feed with ball screw: Highest cutting performance and cutting quality, while being gentle on the saw blade
- Infinitely variable frequency-controlled saw blade drive
- Consistent use of the most modern recirculating ball guides: smooth-running, highly resilient, low-maintenance and backlash-free
- Unique and patented double miter system: Material is always stretched at right angles
| cutting area | mm | mm |
| 90° | 410 | 700x410 |
| 45° right | 410 | 500x410 |
| 45° left | 410 | 430x410 |
| 30° right | 320 | 320x410 |
| engine [kW] | 5.5 | |
| saw band [mm] | 5800x41x1.3 | |
| Belt speed [m/min] | 15-150 | |
| Dimension [mm] (LxWxH) | 1500x2800x2000 | |
| Material support weight [kg/m] | max 250 | |
| working height [mm] | 750 | |

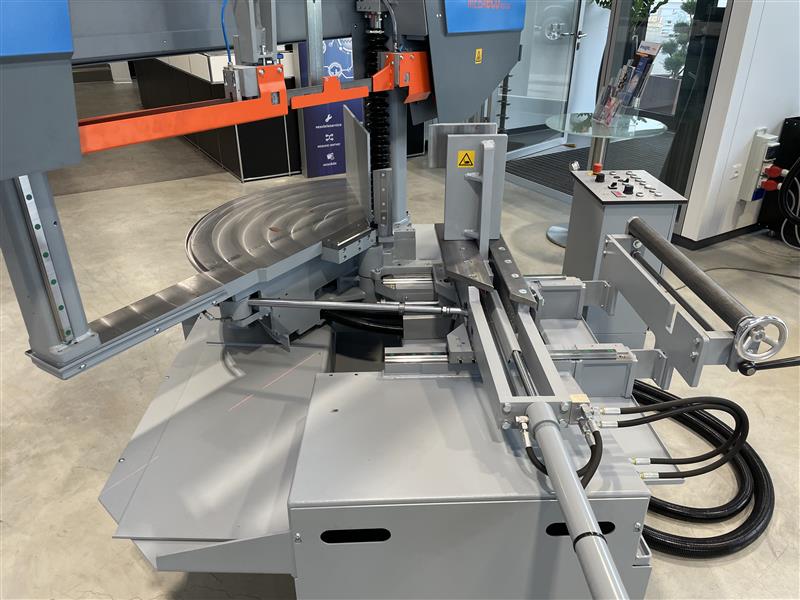

- MEBA mitre system: Rotating table avoids sawing up of the material support. Material is always clamped rectangular and close up to the saw blade.
- Digital miter indicator to 0.1°
- Automatic movement of the vice; The material is always clamped at right angles, close to the saw blade
- Automatic cutting pressure and feed monitoring
- Frequency-controlled AC drive 15-150 m/min
- Hydraulic material full stroke clamping
| Automation level: | Single cut |
|---|---|
| Cutting material: | Pipe, Round Stock Material |
| Dimensions: | 1500x2800x2000 mm |
| Max. cutting range height ↕ (mm): | 410 |
| Max. cutting range width ↔ (mm): | 430 |
| Max. cutting range Ø (mm): | 410 |
| Type: | Miter Saw |
| Schnittgeschwindigkeit: | 15 - 150 m/min |
| Reststücklänge: | 75 mm |
| Antrieb - Sägeband: | 5,5 kW |
| Sägebandspannung: | Hydraulisch |
| Sägebandabmessung: | 5800x41x1,3 mm |
| Arbeitshöhe: | 750 mm |
| Gewicht: | 1850 KG |
