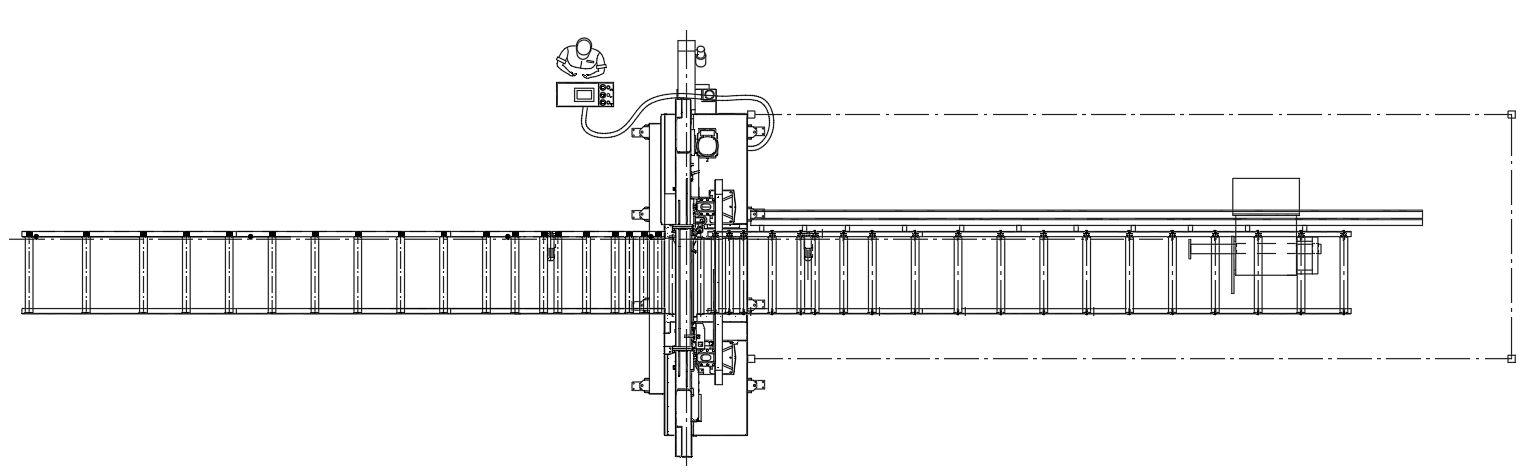

MEBAxtreme 1000-1000

MEBAxtreme: Straight-cut automatic saws with a strong bite

The 90° semi-automatic saw is designed for extreme cutting requirements, as demanded in mechanical engineering, heavy industry, foundries, and the automotive sector.

Operators can rely on the precise engineering and reliability of this robust band saw, achieving high-quality cuts without the need for rework for subsequent processes or customers.

MEBAxtreme stands for extremely high productivity, material, energy, and resource efficiency. The machine is network-capable and equipped with a powerful, web-enabled industrial control system.

Standard equipment

• 2-column linear-guided high-performance metal band saw for 90° cuts in a stable, torsion-resistant compact design, delivering top precision and cutting results
• Modern vibration-damping saw frame guidance via 2-column linear technology, increasing cutting performance and extending saw blade life
• Extremely powerful saw band drive via frequency-controlled AC motor with high efficiency and low energy consumption
• Overload protection for the saw drive; electronic minimum speed monitoring
• Infinitely variable hydraulic cutting pressure and feed monitoring at the saw band pressure, ensuring optimal conditions for each cutting task, i.e., constant pressure for solid material and constant feed for thin-walled profiles
• 67 mm saw band for maximum performance and best cutting results across a wide range of materials and cross-sections
• Saw band angled 3° to the material support surface for further optimization of cutting results
• Saw band drive with end stop and rapid return of the saw frame after cut completion

• Hydraulic saw band tension with pressure relief when the machine is stopped

• Hydraulic full-stroke material clamping, suitable for full-stroke bundle clamping

• Material clamp hydraulically lowerable for fast and gentle material positioning

• Two additional heavy material support rollers on both sides of the clamp

• Central machine control for ergonomic adjustment and monitoring of all machine parameters

• Automatic height adjustment for material clearance

• Self-adjusting movable band guide according to material width

• Saw band deflection rollers with carbide guides

• Integrated chip cleaning brush

• Generously sized chip channel for optimal chip removal

• Operating manual and spare parts list (digital)

• Coolant system

• CETOP hydraulic system with suction filter and oil level monitoring

• Paint finish silver gray / blue gray (RAL 7001 / RAL 7031)


• Laser light for cut line indication / scribing saws

• Micro-dosing system

• Clamping pressure adjustment at fixed control panel

• Material support table for infeed or outfeed

• Hour meter

• LED work light

• Scraper conveyor

• Mobile chip tipping container for forklift transport

• Compressor for micro-dosing system

• Hydraulic heater 3 kW

• Coolant heater

• Control cabinet heater

• Setup elements

• Roller conveyors available in various lengths

Specifications subject to change without notice.
