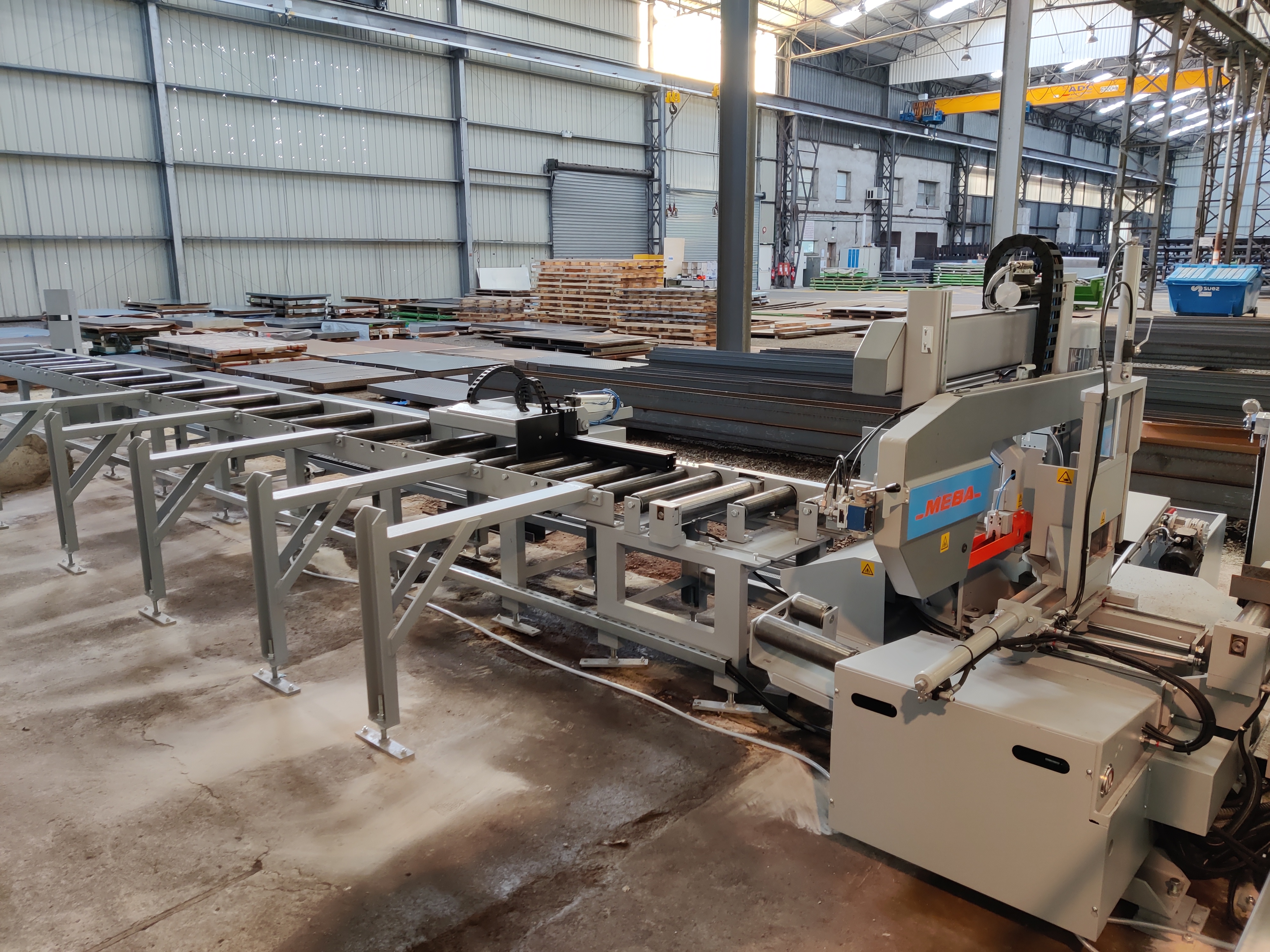

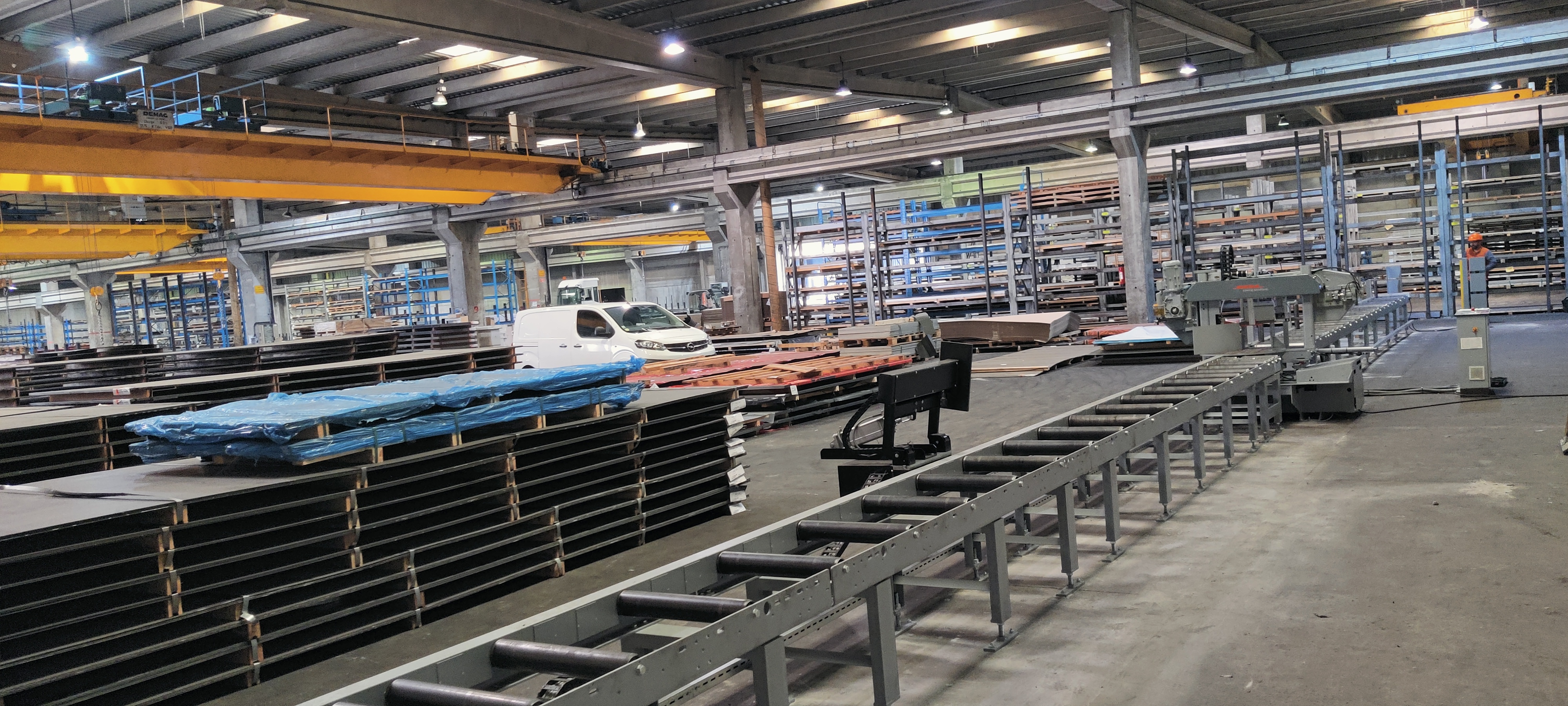

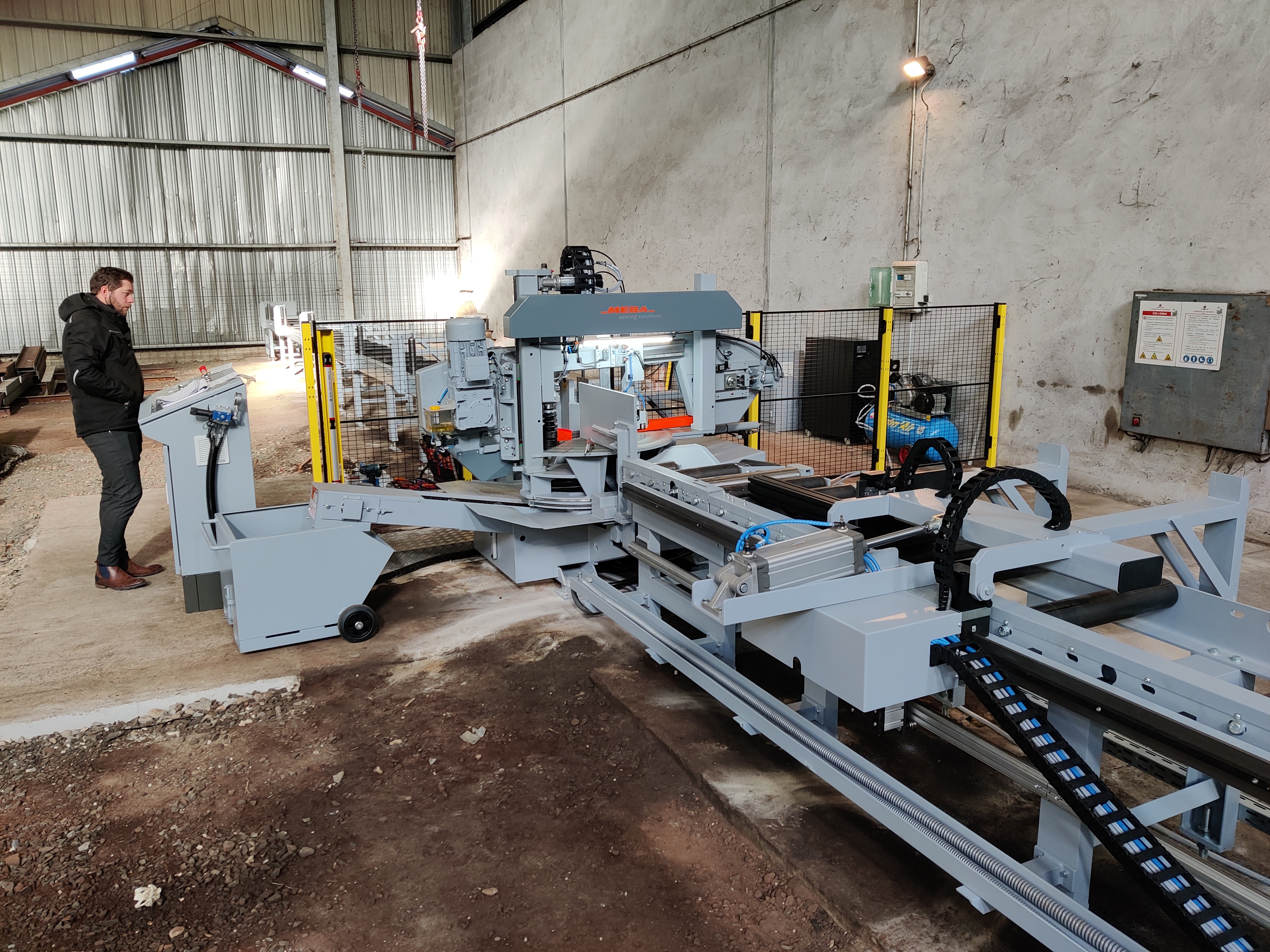

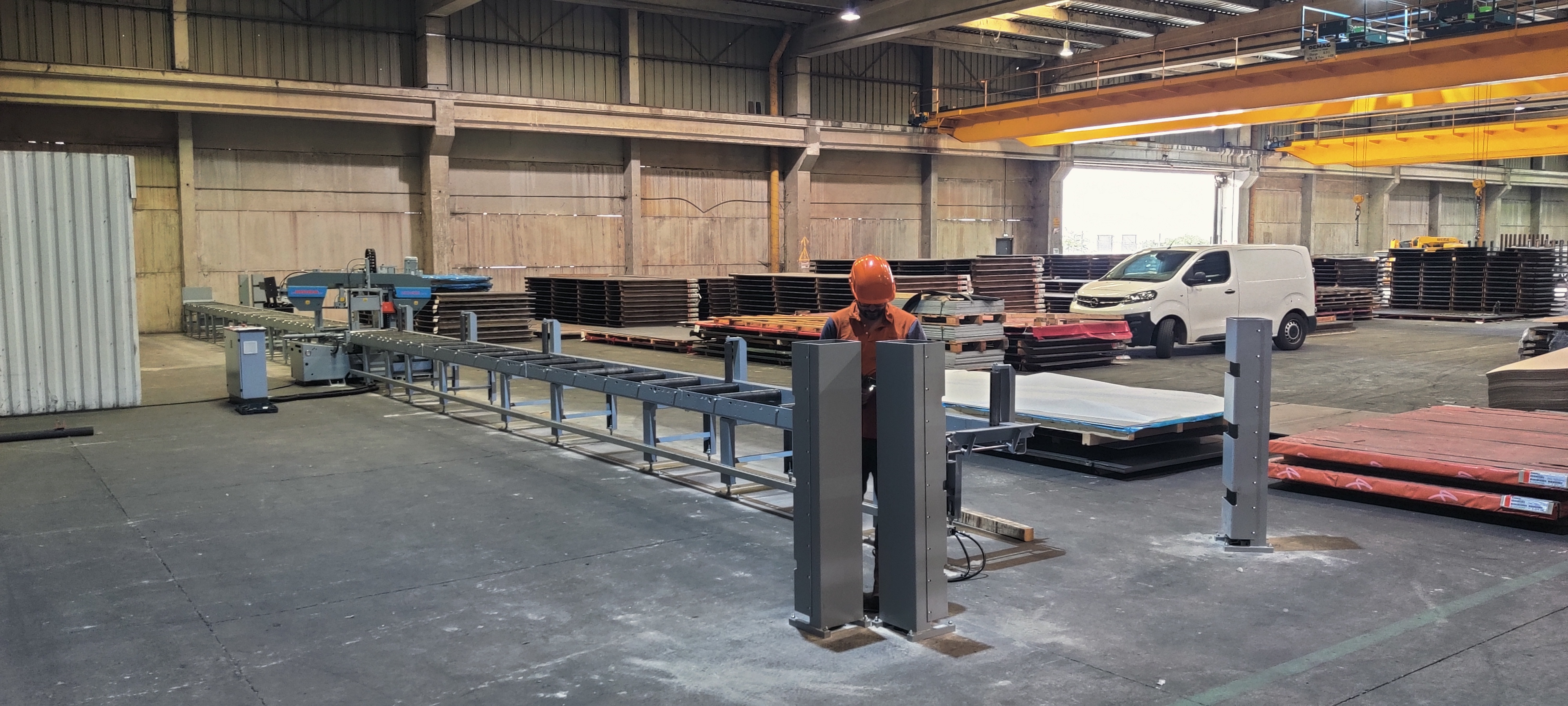

MEBAeco 335 DG
The MEBAeco 335 DGA is a powerful automatic double miter band saw with a patented miter system, CNC control, and servo-controlled feed - ideal for precise, flexible cuts with varying materials and angles.
Product information "MEBAeco 335 DG"
MEBAeco: Ready-made individuality
Semi automatic bandsaw with 2-column linear guided double mitering. Metal-bandsawing machine with stepless mitre adjustment 30° - 45° - 90° - 135° and with patented mitre system (ERP Nr. 0491120). Especially suitable for cutting material with different cross sections. For frequent change of straight and mitre cuts. Center of rotation remains the same for each mitre. The MEBA mitre bandsawing machine MEBAeco 335 DG is an ergonomic machine built with experience gained over a long period of year. Simple central operation. Machine control according CE-Norm 89/289.Standard equipment
- Semi-automatic sawing process with workpiece clamping, sawing, and raising to the set height after the cut is complete
- MEBA high-performance package: Saw feed via frequency-controlled ball screw drive with automatic cutting pressure and feed monitoring. This ensures optimum conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
- Manual miter adjustment, digital readout accurate to 0.1° Quick-action lowering of the saw frame via push button to the edge of the material
- Patented double miter system (ERP No. 0491120)
- Automatic clamp movement and digital miter adjustment.
- Hydraulic full-stroke workpiece clamping. Quick material clamping. The material is clamped parallel at 90° for every angle setting of the saw frame.
- Stable two-column linear-guided saw frame
- Saw blade positioned at a 3° angle to the material support surface.
- Central machine control
- Saw frame clearance height adjustment
- Movable belt guide arm, adjustment to material width
-
Saw blade deflection rollers - carbide guide
- Chip cleaning brush, rotating
-
Saw blade tension with torque wrench
- Operating instructions and spare parts list (digital)
- 1 MEBA bimetal saw blade 4/6 ZpZ on machine
- CETOP hydraulic system
- Coolant system (approx. 100 liters). Can be combined with MEBA Eco micro-dosing system as an option.
- Silver gray/blue gray paint finish (RAL 7001/RAL 7031)
Optional
- Laser light for cut line indication/scoring saws
- Chip brush driven
- Microdosing system
- Tension pressure regulation with fixed control panel 335 DG
- Material bundle tension 335 DG 320x320mm
- Material lifting roller, manual
- Material lifting roller, hydraulic MEBAeco 335 DG
- Control panel set up separately
- Semi-automatic miter swivel 335 DG
- Open the main clamping device after completing the cut
- LED work light
- Minimum speed monitoring on the belt disc
- Special two-color paint finish according to RAL chart
- Hydraulic saw blade tensioning MEBAeco 335 DG
- Scraper belt conveyor for optimal chip disposal
- Mobile chip tipping container for forklift transport
- Water spray gun
- Compressor for microdosing system
- Heating for hydraulic unit
- Mounting elements (4x M16)
- Cutting progress control MEBA 335, 335G, 335DG
- Measuring stop 0-800 mm
- Floor drip tray
- Roller conveyors available in various lengths
Specifications subject to change without notice. Exact delivery date will be provided in the order confirmation.
| Product number: | 335 DG00020 |
|---|---|
| Automation level: | Single cut |
| Cutting material: | Pipe, Round Stock Material |
| Dimensions: | 1450x2300x1900 mm |
| Max. cutting range height ↕ (mm): | 335 |
| Max. cutting range width ↔ (mm): | 500 |
| Max. cutting range Ø (mm): | 335 |
| Type: | Double Mitre Saw 30°-150°, Miter Saw |
| Type series: | MEBAeco |
| weight: | 1320 KG |
| Schnittgeschwindigkeit: | 15 - 150 m/min |
| Reststücklänge: | 75 mm |
| Antrieb - Sägeband: | 3,0 kW |
| Sägebandspannung: | Mechanisch |
| Sägebandabmessung: | 4400x34x1,1 mm |
| Arbeitshöhe: | 750 mm |
