MEBAeco 410 DG
The MEBAeco 410 DG is a semi-automatic double miter metal band saw with precise miter adjustment from 30° to 135°. It impresses with its patented miter system, high cutting performance, and universal application.
Product information "MEBAeco 410 DG"
MEBAeco: Ready-made individuality
2-column guided double miter metal band saw machine with semi-automatic design. With infinitely variable miter adjustment 30° - 45° - 90° - 135° and patented miter system (ERP No. 0491120). Particularly suitable for universal use with different cross-sections, materials, and frequently changing miter cuts. The universally applicable MEBAeco 410 DG miter band saw machine is ergonomically designed and offers optimal value for money. The machine control complies with CE standard 89/289.Standard equipment
- Semi-automatic sawing process with workpiece clamping, sawing, and raising to the set height after the cut is complete
- MEBA high-performance package: Saw feed via frequency-controlled ball screw drive with automatic cutting pressure and feed monitoring. This ensures optimum conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
- Manual miter adjustment, digital readout with 0.1° accuracy
- Rapid descent of the saw frame via push button to the edge of the material
- Control panel set up separately

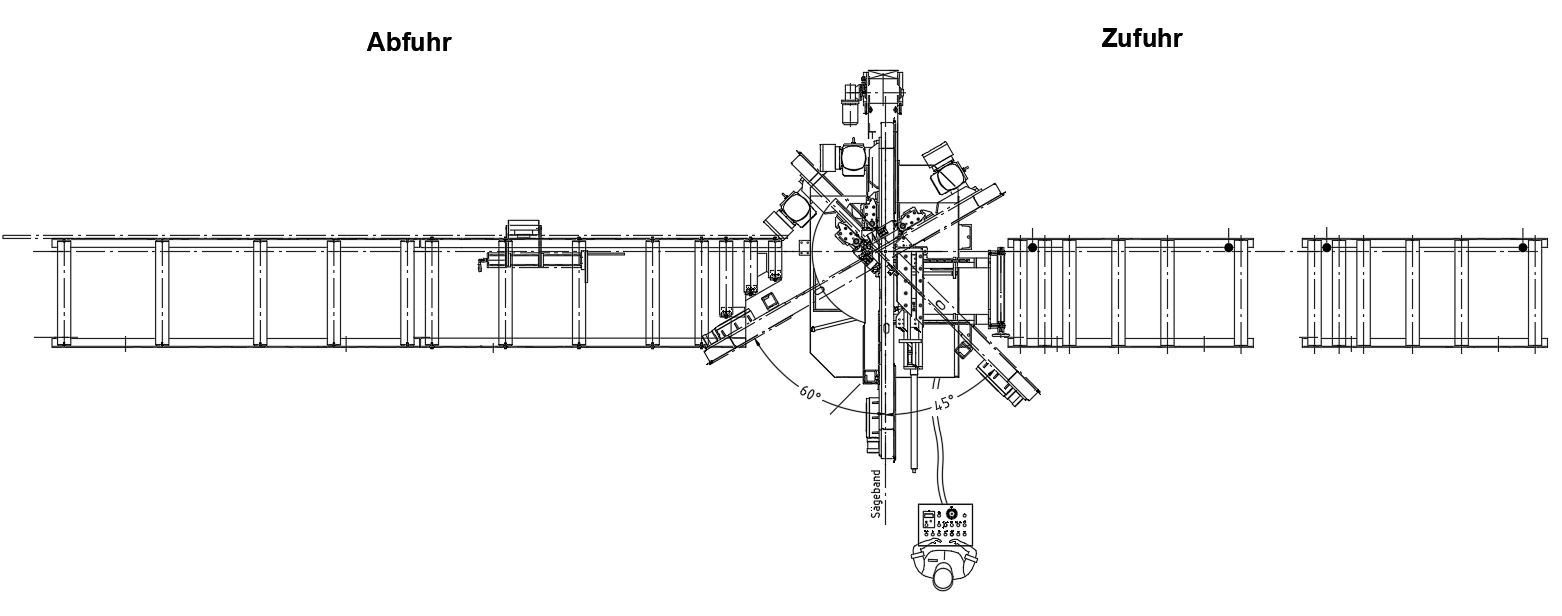

- Patented double miter system (ERP No. 0491120) Unique double miter band saw that allows miters on both sides to be adjusted easily and economically by simply swiveling the saw frame and the material support.
- Automatic clamp movement and digital miter adjustment. The material clamp moves automatically in the direction of flow according to the desired miter, ensuring that the material is always clamped at a right angle, close to the saw blade.
- The miter pivot point is the intersection between the saw blade and the fixed clamping jaw, which means that the length measurement does not change when the angle position is altered.
- Hydraulic full-stroke workpiece clamping, quick material clamping. The material is clamped parallel at 90° for every angle setting of the saw frame.
- Stable two-column linear-guided saw frame
- Saw blade positioned at a 3° angle to the material support surface
- Central machine control
- Saw frame clearance height adjustment via height switch bar
- Movable belt guide arm, adjustment to material width
- Saw blade deflection rollers - carbide guide
- Chip cleaning brush, rotating
- Hydraulic saw blade tensioning with pressure relief when the machine is at a standstill
- Operating instructions and spare parts list (digital)
- 1 MEBA bimetal saw blade 4/6 ZpZ on machine
- CETOP hydraulic system
- Coolant system (approx. 100 liters). Can be combined with MEBA Eco micro-dosing system as an option.
- Silver gray/blue gray paint finish (RAL 7001/RAL 7031)
Optional
- Laser light for cutting line display/scoring saws
- Powered chip brush
- Micro-dosing system
- Clamping pressure regulation for separately installed
- Material bundle clamping, hydraulic 410 DG
- Manual lifting roller
- Hydraulic lifting roller
- Semi-automatic miter swivel 410 DG
- Main clamping block opens after cutting is complete
- LED work light
- Minimum speed monitoring
- Measuring stop 0-800 mm
- Special 2-color paint finish according to RAL chart
- Scraper conveyor for optimal chip disposal
- Mobile chip tipping container for forklift transport
- Cutting path control 410 DG
- Water spray gun
- Compressor for micro-dosing system
- Heating for hydraulic unit
- Coolant heating
- Support elements (4 pieces)
- Lift limit for saw frame 410 DG
- Floor drip tray
- Roller conveyors available in various lengths
Specifications subject to change without notice.| Product number: | 410 DG000F2 |
|---|---|
| Automation level: | Serial cut, Single cut |
| Cutting material: | Pipe, Round Stock Material |
| Dimensions: | 1500x2800x2000 mm |
| Max. cutting range height ↕ (mm): | 410 |
| Max. cutting range width ↔ (mm): | 700 |
| Max. cutting range Ø (mm): | 410 |
| Type: | Double Mitre Saw 30°-150°, Miter Saw |
| Type series: | MEBAeco |
| weight: | 1850 KG |
| Schnittgeschwindigkeit: | 15 - 150 m/min |
| Reststücklänge: | 75 mm |
| Antrieb - Sägeband: | 5,5 kW |
| Sägebandspannung: | Hydraulisch |
| Sägebandabmessung: | 5800x41x1,3 mm |
| Arbeitshöhe: | 750 mm |
