MEBAbase 24 DG-HS
Description
Product information "MEBAbase 24 DG-HS"
MEBAbase: The must-have for doers
The starter saws of the MEBAbase series are suitable for a wide range of applications and are reliable all-rounders. Whether for your hobby in the garage, craftsman or metal worker - there is something for everyone. The universally usable miter band saw machine MEBAbase 24 DG-HS is ergonomically mature and has an optimal price-performance ratio. Simple central operation.Standard equipment

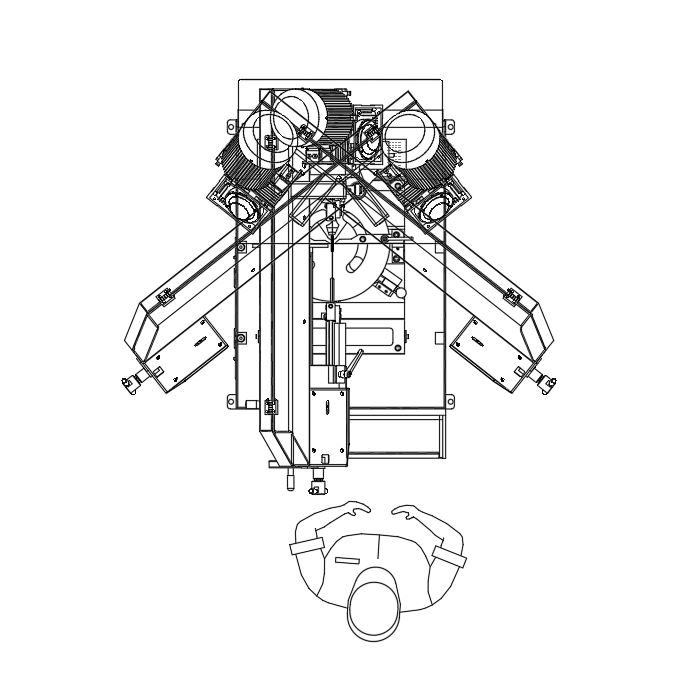

- Manual miter adjustment from 90° to 30°, infinitely variable according to scale with 1.0° accuracy
- The miter pivot point is the intersection between the saw blade and the material, which is why there is no change in length when the angle position is changed
- End stops at 30° - 45° - 90° - 45°
- Hydraulic material clamping. The material is clamped parallel at 90° for every angle setting of the saw frame.
- Central machine operation
- Cutting pressure reduction due to the dead weight of the heavy, torsion-resistant saw frame and fine adjustment depending on the material cross-section via hydraulic damping cylinder and weight compensation spring
- Saw blade drive with limit switch
- Stepless jaw adjustment
- Movable belt guide arm, adjustment to material width
- Saw blade deflection rollers - carbide guide
- Practical chip collection tray with drip screen
- Chip cleaning brush, rotating
- Mechanical saw blade tensioning
- Operating instructions and spare parts list (digital)
- 1 MEBA bimetal saw blade 4/6 ZpZ mounted on machine
- Complete coolant system
- Anthracite paint finish (RAL 7016)
- Roller conveyors available in various lengths
The machine is delivered WITHOUT hydraulic oil. This (approx. 25 l) must be filled in before commissioning and the fill level checked.
Technical Properties
| Automation level: | Single cut |
|---|---|
| Cutting material: | Pipe, Round Stock Material |
| Cutting speed: | 35 + 75 m/min |
| Dimensions: | 800x1750x1500 mm |
| Max. cutting range height ↕ (mm): | 240 |
| Max. cutting range width ↔ (mm): | 310 |
| Max. cutting range Ø (mm): | 240 |
| Remaining piece length: | 60 mm |
| Saw blade dimensions: | 2910x27x0,9 mm |
| Saw blade drive: | 1,1/1,8 kW |
| Saw blade tension: | Mechanical |
| Type: | Miter Saw 30°-90° |
| Type series: | MEBAbase |
| Weight: | 470 KG |
| Working height: | 900 mm |
