Product information "MEBAeco 335 DG"

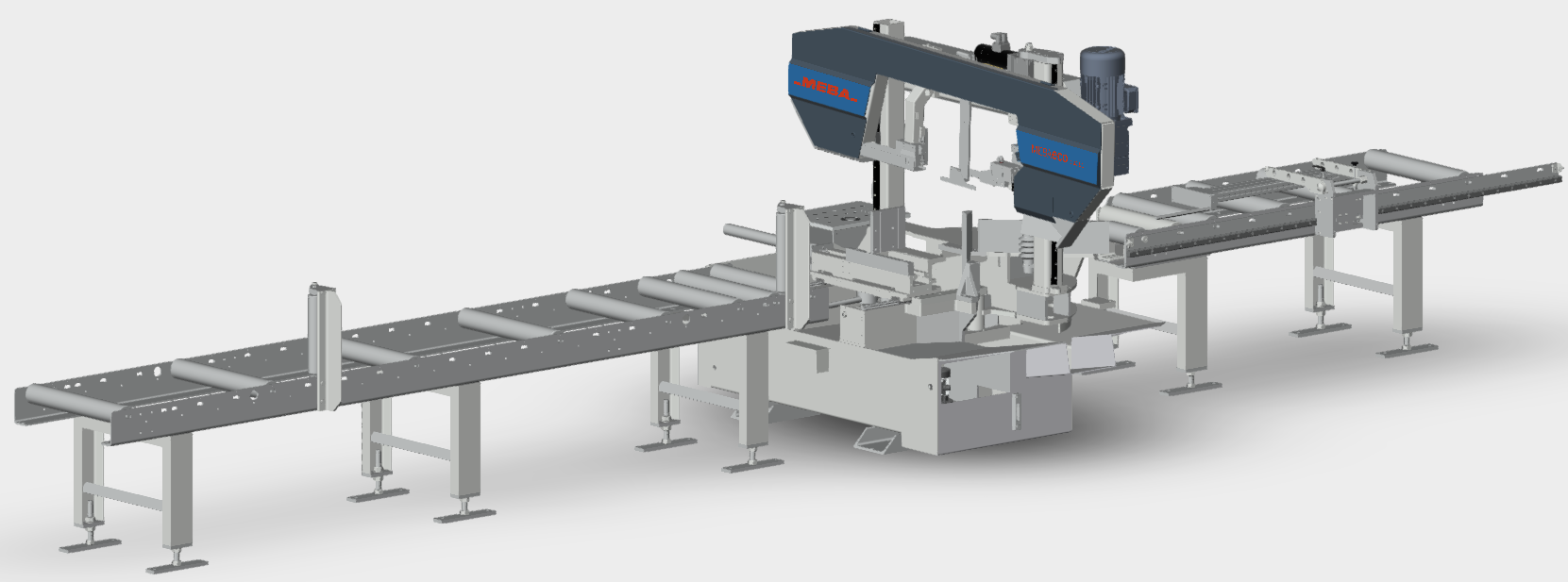

MEBAeco 335 DG Metal-Fabricator-Editio

Fully Equipped Double Mitre Band Saw


The 2-column guided double mitre metal band saw in semi-automatic design features continuously adjustable mitre settings of 30°–45°–90°–135° and a patented mitre system. It is ideally suited for universal use across a wide range of material cross-sections, materials, and applications with frequent mitre changes. The MEBAeco 335 DG combines ergonomic design with excellent value for money. The machine control system complies with CE standard 89/392.

In the Metal-Fabricator-Edition, the machine comes equipped with an extended package designed for efficient and precise production processes:

Standard equipment

  • Laser Cutting Line Indicator (Layout Cutting)
    Projects the cutting line directly onto the material for precise alignment along the marking line.
  • Driven Chip Brush
    Synchronized with the band speed for efficient and reliable chip removal.
  • Micro Dosing System (Minimum Quantity Lubrication)
    Enables clean and economical cutting using high-performance spray oil. Ideal for tubes and profiles, producing dry chips without dripping. Switchable between coolant operation and micro-spray application.
    Compressed air connection required: 4–8 bar.
  • Clamping Pressure Regulation (335 DG Control Panel)
    Manual adjustment via pressure reducing valve with integrated pressure gauge display.
  • Manual Material Lift Roller (470 mm)
    Supports convenient material handling and feeding.
  • LED Work Light
    Provides optimal illumination of the working area.
  • Water Spray Gun
    For cleaning and rinsing the machine.
  • Installation Elements (4 × M16)
    Ensure stable and secure machine positioning.
  • Material Infeed Roller Conveyor (4000 × 500 mm, manual)
    Equipped with 8 support rollers (5.8 kN load capacity each) and 2 side guide rollers.
  • Material Outfeed Roller Conveyor (2000 × 500 mm, manual)
    Equipped with 6 support rollers (5.8 kN load capacity each) and stepped rollers for controlled material flow.
  • Linear-Guided Measuring Stop (manual / digital)
    Measuring length: 2000 mm. Precision linear guide (approx. 2400 mm). Digital display with 0.1 mm resolution, pivoting material stop, and manual lift function.




Specifications subject to change without notice.

Technical Properties

Automation level: Single cut
Cutting material: Pipe, Round Stock Material
Cutting speed: 15 - 150 m/min
Dimensions: 1450x2350x1900 mm
Max. cutting range height ↕ (mm): 335
Max. cutting range width ↔ (mm): 500
Max. cutting range Ø (mm): 335
Remaining piece length: 75 mm
Saw blade dimensions: 4400x34x1,1 mm
Saw blade drive: 3,0 kW
Saw blade tension: Mechanical
Type: Double Mitre Saw 30°-150°, Miter Saw
Type series: MEBAeco
Weight: 1320 KG
Working height: 750 mm
