Product information "MEBAeco 410 DG"

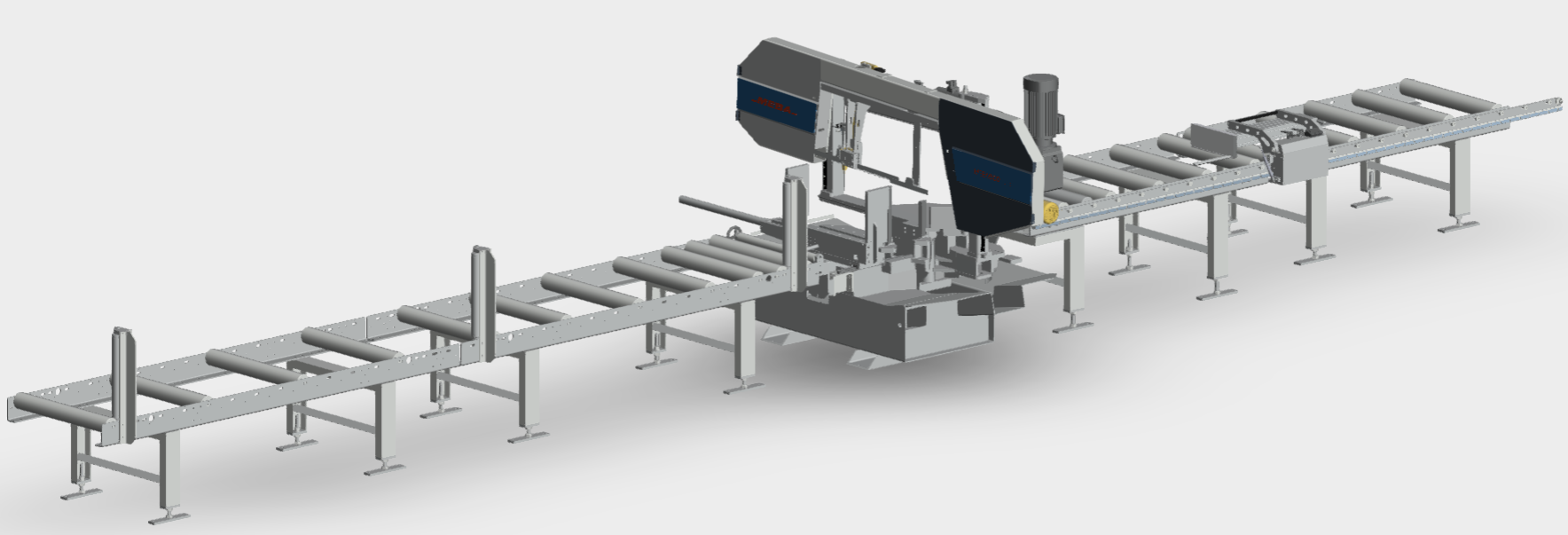

MEBAeco 410 DG Metal-Fabricator-Edition

Fully Equipped Double Mitre Band Saw

The MEBAeco 410 DG Metal-Fabricator-Edition is a 2-column guided double mitre metal band saw in a semi-automatic configuration, designed for flexible and economical use in metal fabrication.

With its continuously variable mitre adjustment from 30°–45°–90°–135° and patented mitre system (ERP No. 0491120), the machine enables precise cutting across a wide range of material cross-sections and applications with frequently changing mitre angles. Thanks to its ergonomic design, robust construction, and excellent price-performance ratio, the MEBAeco 410 DG is ideally suited for universal use in metal construction and production environments. The machine control system complies with CE Standard 89/392.

In the Metal-Fabricator-Edition, the machine comes equipped with an extended package of features for efficient, precise, and production-ready manufacturing processes.

Standard equipment

  • Laser Cutting Line Indicator (Layout Cutting)
    Projects the cutting line directly onto the material and visualizes the cutting channel, allowing precise manual alignment to the marked line.
  • Driven Chip Brush
    Equipped with a separate drive and synchronized with the band speed for efficient chip removal.
  • Micro Dosing System (Minimum Quantity Lubrication)
    Enables clean and economical cutting using high-performance spray oil. Produces dry chips without dripping and is ideal for tubes and profiles. Switchable between coolant operation and micro-spray mode.
    Compressed air connection required: 4–8 bar.
  • Clamping Pressure Regulation with Separate Control Panel
    Manual pressure adjustment via pressure-reducing valve. Current clamping pressure can be read directly on the pressure gauge.
  • Manual Material Lift Roller
    Supports ergonomic material handling and feeding.
  • LED Work Light
    Provides optimal illumination of the working area.
  • Minimum Speed Monitoring
    Monitors the sawing process and increases operational reliability.
  • Water Spray Gun
    For cleaning and rinsing the machine.
  • Installation Elements (4 × M16)
    For secure and stable machine installation.
  • Manual Infeed Roller Conveyor (6000 × 700 mm)
    Equipped with 11 support rollers (load capacity: 7.6 kN per roller) including 3 side guide rollers.
  • Manual Outfeed Roller Conveyor (4000 × 700 mm – Mitre)
    Equipped with 10 support rollers (load capacity: 7.6 kN per roller) with stepped rollers.
  • Linear-Guided Measuring Stop – Manual / Digital
    Heavy-duty design with approx. 4400 mm guide rail length and 4000 mm measuring length. Includes fine adjustment, digital display with 0.1 mm resolution, pivoting material stop, and manual lift mechanism.


Specifications subject to change without notice.

Technical Properties

Automation level: Serial cut, Single cut
Cutting material: Pipe, Round Stock Material
Cutting speed: 15 - 150 m/min
Dimensions: 1500x2800x2000 mm
Max. cutting range height ↕ (mm): 410
Max. cutting range width ↔ (mm): 700
Max. cutting range Ø (mm): 410
Remaining piece length: 75 mm
Saw blade dimensions: 5800x41x1,3 mm
Saw blade drive: 5,5 kW
Saw blade tension: Hydraulic
Type: Double Mitre Saw 30°-150°, Miter Saw
Type series: MEBAeco
Weight: 1850 KG
Working height: 750 mm
