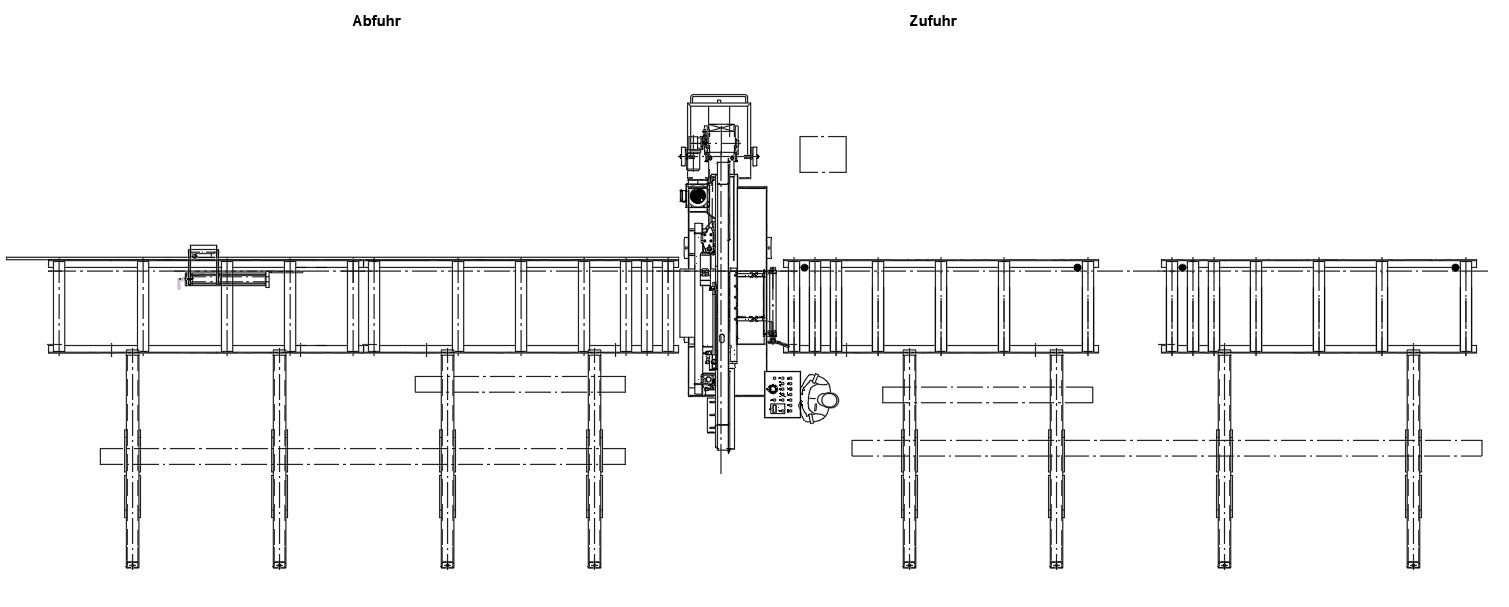

MEBAeco 410
The MEBAeco metal band saw machine delivers precise, straight cuts in hard materials. Semi-automatic, powerful, and versatile, it impresses with hydraulic tensioning, a stable two-column system, and optimal cut monitoring.
Product information "MEBAeco 410"
MEBAeco: Die Individualität von der Stange
2-column high-performance metal band sawing machine with semi-automatic design. A metal band sawing machine for straight cuts. Particularly suitable for universal use with different cross-sections and hard materials.Standard equipment
- Semi-automatic sawing process with workpiece clamping, sawing, and raising to the set height after the cut is complete
- MEBA high-performance package: Saw feed via frequency-controlled ball screw drive with automatic cutting pressure and feed monitoring. This ensures optimum conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
- Rapid descent of the saw frame via push button to the edge of the material
- Control panel permanently attached
- Hydraulic full-stroke workpiece clamping, quick material clamping
- Double clamping device, which clamps the material on both the feed and discharge sides
- Stable two-column linear-guided saw frame
- Saw blade positioned at a 3° angle to the material support surface
- Central machine control
- Movable belt guide arm, adjustment to material width
- Saw blade deflection rollers - carbide guide
- Chip cleaning brush, rotating
- Hydraulic saw blade tensioning with pressure relief when the machine is at a standstill
- Operating instructions and spare parts list (digital)
- 1 MEBA bimetal saw blade 4/6 ZpZ on machine
- CETOP hydraulic system
- Coolant device (approx. 100 liters). Can be combined with MEBA micro-spray device as an option.
- Silver gray/blue gray paint finish (RAL 7001/RAL 7031)
Optional
- Laser light for cutting line display/scoring saws
- Chip brush driven
- Microdosing system
- Tension pressure regulation with fixed control panel
- Material bundle tension MEBA 410
- Material support table
- Material support table with lifting roller
- Control panel set up separately
- Open the main clamping device after completing the cut
- LED work light
- Minimum speed monitoring
- Measuring stop 0-500 mm
- Special two-color paint finish according to RAL chart
- Scraper belt conveyor for optimal chip disposal
- Mobile chip tipping container for forklift transport
- Cut progression control 410
- Water spray gun
- Compressor for microdosing system
- Heating for hydraulic unit
- Heating coolant
- Mounting elements (4x M16)
- Roller conveyors available in various lengths
Specifications subject to change without notice.| Product number: | 410 00000F2 |
|---|---|
| Automation level: | Single cut |
| Cutting material: | Pipe, Round Stock Material |
| Dimensions: | 1200x2800x2000 mm |
| Max. cutting range height ↕ (mm): | 410 |
| Max. cutting range width ↔ (mm): | 700 |
| Max. cutting range Ø (mm): | 410 |
| Type: | Miter Saw 90° |
| Type series: | MEBAeco |
| weight: | 1650 KG |
| Schnittgeschwindigkeit: | 15 - 150 m/min |
| Reststücklänge: | 25 mm |
| Antrieb - Sägeband: | 5,5 kW |
| Sägebandspannung: | Hydraulisch |
| Sägebandabmessung: | 5800x41x1,3 mm |
| Arbeitshöhe: | 750 mm |
