MEBAbase 32 A
Price on request
Delivery time: 1-2 weeks
Description
Product information "MEBAbase 32 A"
MEBAbase: The must-have for doers.
The saws in the MEBAbase series are suitable for a wide range of applications and are reliable all-rounders. With the MEBAbase 32 A, you are choosing a straight-cut automatic saw with sophisticated technology.
Standard equipment
- Fully enclosed automatic band saw for safe, clean, and quiet operation; easily accessible thanks to large access doors
- Stability and quality thanks to torsion-resistant welded construction
- Side band guide combines preloaded carbide slide guides and band twist rollers
- Hydraulic saw feed
- Infinitely variable saw feed speed from 1–300 mm/min
- Self-regulating cutting parameters and temperature-independent cutting pressure regulation: Process reliability through continuous hydraulic cutting pressure and feed monitoring and automatic adjustment of the saw feed speed if the cutting pressure is too high.
- Cut progression control and saw blade breakage monitoring
- Infinitely variable cutting speed 10–80 m/min
- Large coolant reservoir (approx. 90 liters)
- Automatic belt breakage monitoring with shutdown in case of belt breakage
- Hydraulic band saw tensioning
- Laser light for cut line indication
- Optimal cleaning of the tooth edge: a powered round brush removes dirt and chips from the saw blade
- Hydraulic bundle tensioning
- Automatic material feed with hydraulic full-stroke material clamping
- Stable, linearly guided slide-in clamping vice for maximum positioning accuracy
- Integrated work light
- Integrated material end detection
- Integrated roller conveyor with push-in clamping device; closed roller conveyor
- Opening the slide-in clamping device on both sides
- Hydraulic clamping pressure regulation for the insert and main clamping block
- Hydraulic chip conveyor, continuously adjustable
- Convenient disposal of parts via storage table
- Movable/adjustable deflector plate

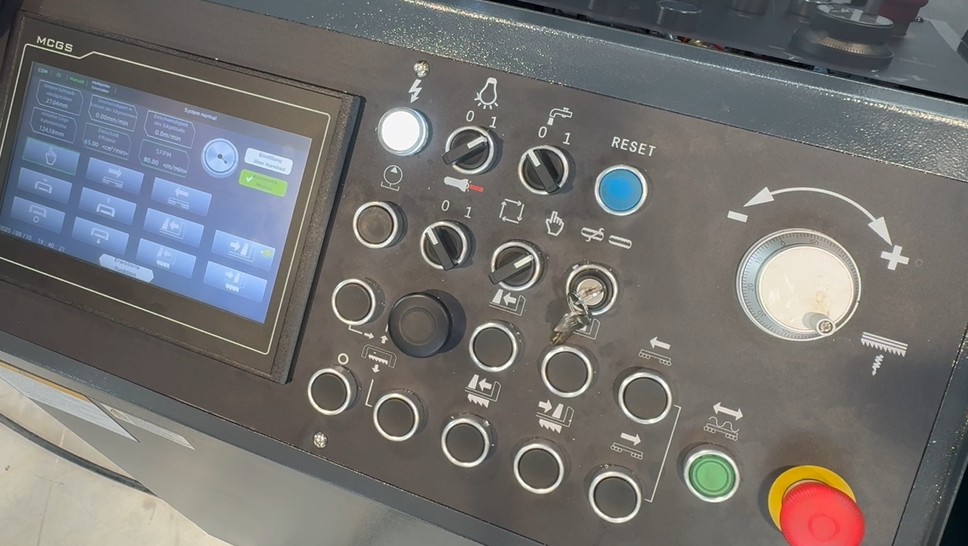

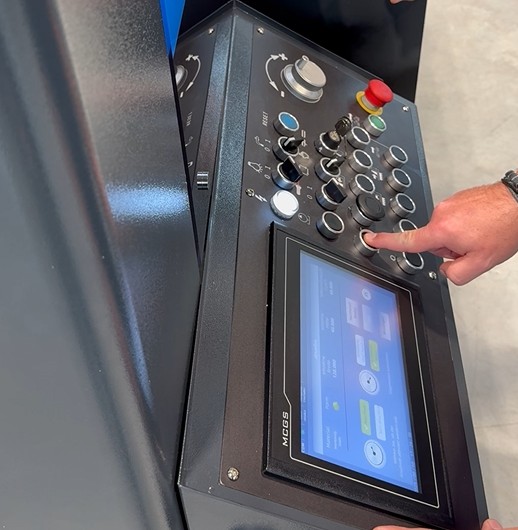

- Robust panel controller with touchscreen, menu-driven, self-explanatory symbols
- Fully automatic sawing process for any length and number of pieces
- Height measurement system for optimal positioning of the saw frame
- Easy program creation and management, manual and automatic operation
- Foldable traffic light/status light, red/green, for quickly visible machine status
- Programmable central lubrication of the linear guide on the slide clamp
Technical Properties
| Automation level: | Serial cut |
|---|---|
| Color: | black |
| Cutting material: | Round solid material, Square solid material, Square tube, Tube |
| Dimensions: | 2250x2300x1700 mm |
| Max. cutting range height ↕ (mm): | 320 |
| Max. cutting range width ↔ (mm): | 320 |
| Max. cutting range Ø (mm): | 320 |
| Motor [kW]: | 5 |
| Saw blade tension: | Hydraulic |
| Type: | Miter Saw 90° |
| Type series: | MEBAbase |
| Weight: | 2000 KG |
