MEBAMat 435
Product information "MEBAMat 435"
MEBAmat: The powerhouse for efficient production use
For the most diverse sawing tasks and maximum productivity: The high-performance automatic machine for even larger dimensions saws everything from soft to extremely hard, with all tools, from bimetal to carbide. Thanks to fully networked and automated processes, ancillary costs are reduced to a minimum and only minimal manpower is required: ideal for continuous use in single or multi-shift operation. The enclosed design enables safe and clean operation.
Standard equipment of the MEBAmat 435
- MEBA high-performance package: Saw feed via frequency-controlled ball screw drive with automatic cutting pressure and feed monitoring; rapid traverse lowering of the saw frame
- Minimum speed and saw blade breakage
- monitoring Menu-guided, user-friendly NC dialog control with plain text display
- Automatic cutting channel calculation with multiple stroke function
- Operating hours counter for total time, saw blade service life and order
- Material feed via servo-controlled ball screw and linear guides. Opening of the clamping jaws on both sides during positioning
- Saw frame guide via pre-tensioned linear guides and torsion-resistant frame construction
- Automatic adjustment of the moving belt guides to the material width
- Grooved clamping bars in the infeed and main clamping vice
- Driven chip clearing brush
- Hydraulic saw blade tensioning
Subject to technical changes. You will receive details of the exact delivery time in the order confirmation.
Optional

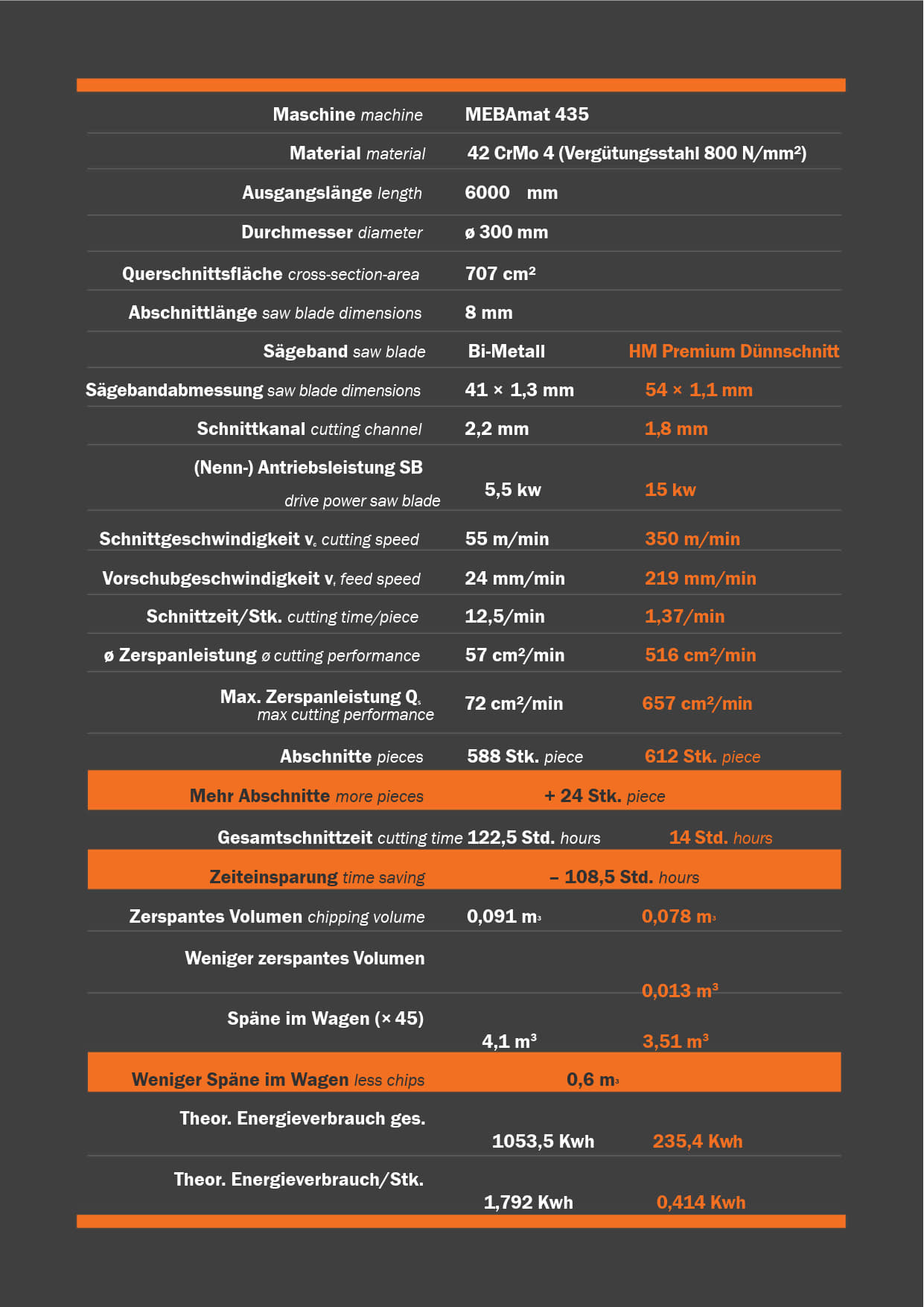

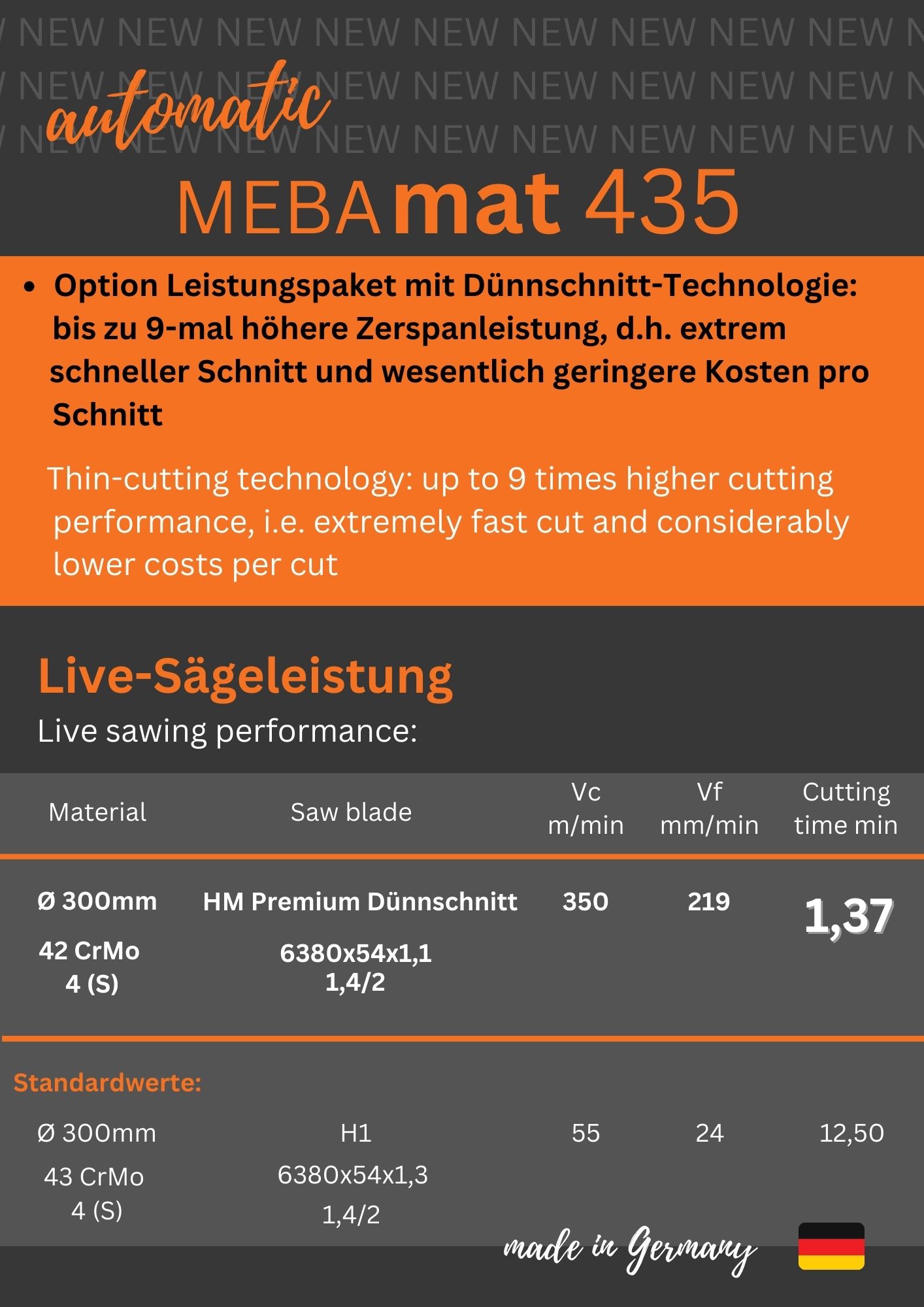

High-performance sawing with thin-cutting package: with 54 x 1.3 or 54 x 1.1 mm saw bladeit 54 x 1,3 oder 54 x 1,1 mm Sägeband
The drive power is increased from 5.5 kW to a maximum of 15 kW, thereby increasing the maximum cutting speed from 150 m/min to 350 m/min. Optimised band tension when using 1.3 or 1.1 mm wide saw bands, no adjustment by the sawing personnel necessary.
- Sawing time reduced by up to 80%
- Cutting performance increased up to 9x
- Enormous savings in cost per cut
Further information on the thin-cutting package can be found in the downloads.
Further options:
- Zero stop
- Multi-bar clamping device/bundle clamping
- Chip conveyor with various ejection heights
- Automatic material height and width detection
- Micro dosing system
- Cut path control
- Laser light for cutting line
- Generous LED machine light
- Water spray gun
- Material database
- Clamping pressure regulation
- Signal light
- Chip carriage
- Work table on the discharge side
- Heating
- Vertical roller
| Product number: | MEBAmat 435 |
|---|---|
| Automation level: | Serial cut |
| Cutting material: | Pipe, Round Stock Material |
| Dimensions: | 1750x3440x2250 mm |
| Max. cutting range height ↕ (mm): | 435 |
| Max. cutting range width ↔ (mm): | 435 |
| Max. cutting range Ø (mm): | 435 |
| Type: | Miter Saw 90° |
| Type series: | MEBAmat |
| weight: | 4100 KG |
| Schnittgeschwindigkeit: | 15 - 150 m/min |
| Reststücklänge: | 20 mm |
| Antrieb - Sägeband: | 5,5 kW |
| Sägebandspannung: | Hydraulisch |
| Sägebandabmessung: | 6200x41x1,3mm |
| Arbeitshöhe: | 750 mm |
