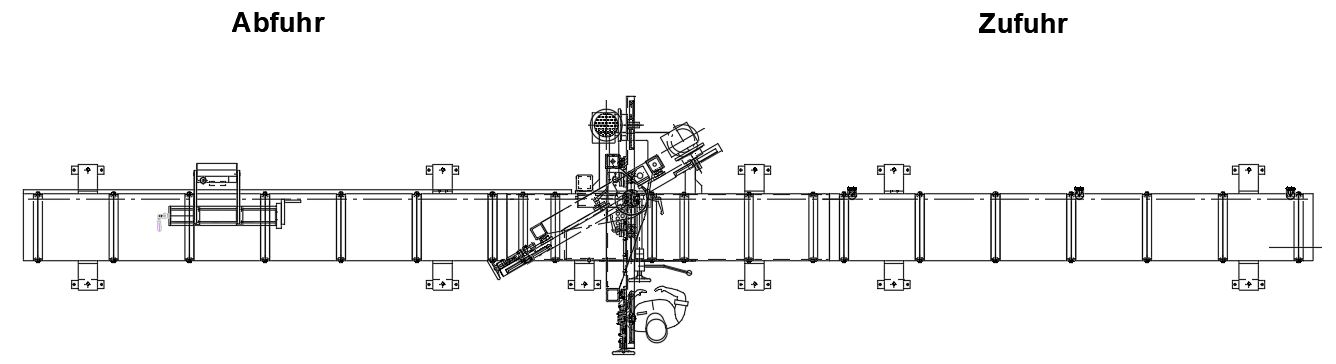

MEBAPro 260 GP
Price on request
Description
Product information "MEBAPro 260 GP"
MEBApro: Your introduction to automation
The 90° automatic machine for single and series cuts and workpiece dimensions up to 300x260mm or 260mm diameter combines high performance with automation. The compact design requires little space and can be set up flexibly. High performance and cutting quality promise increased productivity, and easy commissioning and operation are provided. Standard equipment.
Standard equipment
- The saw unit is mounted above the work surface, keeping all components free from chip contamination.
- The saw band is angled 2° relative to the material support surface.
- The miter pivot point is at the intersection of the saw band and the fixed clamping jaw, ensuring no change in length measurement when changing angles.
- Torsion-resistant, stable welded frame construction, guided linearly on two columns.
- Saw feed via frequency-controlled spindle drive with automatic cutting pressure regulation.
-
PLC-controlled semi-automatic sawing cycle.
-
Height control bar, rapid downfeed to material surface, automatic switch to working feed; rapid downfeed of the saw frame via push button to material edge.
-
Digital miter display, infinitely adjustable 90°–30°.
-
Integrated closed roller track reaching close to the saw band.
-
Infinitely variable cutting speed via powerful frequency-controlled AC drive.
-
Movable band guide arm, adjustable to material width
-
Integrated chip cleaning brush runs with the saw band
-
Saw band tension mechanical
- Saw band deflection rollers with carbide guide
-
MEBA minimal quantity lubrication
-
Chip drawer integrated into the machine concept
-
1 MEBA bimetal saw band 4/6 TPI supplied with the machine
-
Paint finish silver gray / blue gray (RAL 7001 / RAL 7031)
- Operating manual and spare parts list (digital)
-
Laser light for cut line indication / scribing saws
-
Special two-color paint finish according to RAL chart
-
Measuring stop 0–500 mm
-
Compressor for micro-dosing system
-
Pneumatic clamping 260 GP
- Roller conveyors available in various lengths
Specifications subject to change without notice.Technical Properties
| Automation level: | Single cut |
|---|---|
| Cutting material: | Pipe, Profile H, Profile L, Profile U, Round Stock Material |
| Cutting speed: | 15 - 150 m/min |
| Dimensions: | 2150x1650x1850 mm |
| Max. cutting range height ↕ (mm): | 260 |
| Max. cutting range width ↔ (mm): | 300 |
| Max. cutting range Ø (mm): | 260 |
| Remaining piece length: | 20 mm |
| Saw blade dimensions: | 3350x27x0,9 mm |
| Saw blade drive: | 1,5 kW |
| Saw blade tension: | Mechanical |
| Type: | Miter Saw |
| Type series: | MEBApro |
| Weight: | 625 KG |
| Working height: | 750 mm |
